What is a Power Inverter?
A
power inverter is an electronic device that converts direct current (DC) from
battery or solar panel to alternating current (AC) which can power an electric
iron, air conditional, television, mobile
phone, computer and other domestic or industrial appliances. The generated AC power can carry these loads with the energy stored in the battery.
The inverter power is rated in VA or KVA.
A simple power inverter consists of the units in the black box design shown below using top-down approach also known as step-wise design.
Power in VA = AC Voltage x AC Current in Amps
Power in KVA = AC Voltage x AC Current in Amps/1000
Power in Watts = AC Voltage x AC Current in Amps x PF
Where PF = power factor
Power in KW = AC Voltage x AC Current in Amps x PF/1000
Also Power in W = Power in VA x PF
Power in KW = Power in KVA x PFA simple power inverter consists of the units in the black box design shown below using top-down approach also known as step-wise design.

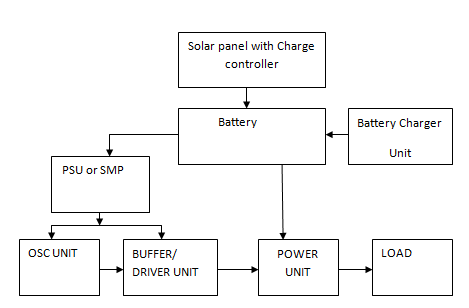

Block Diagram of a Power Inverter
A Simple Square wave Power Inverter Circuit
According to Pst. Engr. A. A Ndubuisi, one of the critical test for graduate engineers is in the application of technical knowledge in a way to solve engineering problems and to implement ideas in a cost effective and practical approach. The ability to take a thought or idea and translate it into a physical and workable product is what separates an engineer from other fields of science and mathematics.
EPED staff are trained by ADACC to think innovatively in order to design and develop electronic products from the initial vague concept to commercial production. Through the in-house training/workshop on COMPUTER AIDED DESIGN, PRINTED CIRCUIT BOARD PRODUCTION AND PROCESSING, SOFTWARE DEVELOPMENT, CIRCUIT DESIGN, MATLAB WORKSPACE AND SIMULINK, etc a lot of improvement has been done in EPED.
Thanks to Engr. Onyebuwa Ugochukwu. E who contributed immensely in the PCB production and processing during the 10th to 14th June 2019 training .
Oscillator: The oscillator unit in the above design is where the power
conversion takes place.
An oscillator is simply an electronic circuit that produces a
periodic or alternating signal. In
the design, CD4047 is used to design the oscillator unit
with good frequency stability.
The CD4047 is a multivibrator chip with very low
power consumption designed by TEXAS INSTRUMENTS. It can operate as a monostable and
astable circuit. It is one of the tricks that can generate 50% duty cycle which creates the pulse applied in the above circuit.
Buffer: The primary purpose of the buffer circuit in the design is to boost the current from the
oscillator unit.
A buffer
circuit is mainly used where a signal has a very low current which
needs to be increased. It can also maintain the same voltage level. The buffer circuit draws current from the power supply unit and adds it to the signal.
Power
Unit: The power unit
consists of a step up transformer and power transistors mostly MOSFET mounted on a heat sink.
This unit can use H-Bridge topology. It determines
the output power rating of the inverter. The battery supply is
given to the MOSFET to deliver the resulting AC signal to the step up
transformer in order to produce 220v AC at 50 Hz. The MOSFET can be IRF540 which is
a N-channel enhanced mode silicon gate field effect transistor.
Power
Inverter system plays a prominent role in ensuring uninterruptible power to
sensitive loads in PRODA. The waveform below is the simulated result of the square wave inverter.
The power inverter system also has a battery charging unit that charges the battery during
utility power. During utility power, the battery of the inverter is charged and
at the same time power is supplied to the loads. When utility power fails, the
battery system begins to supply power via the inverter to the loads.
The backup time depends on the number of batteries as well as the capacity of the batteries in Amp-hours.
The backup time depends on the number of batteries as well as the capacity of the batteries in Amp-hours.
To calculate the inverter battery backup time
It is calculated as:
It is calculated as:
Back up time = Battery Power in Watt hour
(Wh)/Connected Load in Watts (W)
Battery Power in Wh = Battery Capacity in AH x Battery
Voltage (V) x Number of Batteries.
Let
us shorten the formula by using the following Symbols:
Let ABLE = battery backup time in hours
C = battery capacity in AH
V = battery voltage in volts
N = Number of batteries in
series or parallel as the case may be.
PL = connected load in
watts (W)
Now
ABLE = C∗V∗NPL
Suppose we will selected a 24V, 1.5KVA inverter system that
is to use two 12V batteries in series connection and suppose the
capacity of our batteries are 200AH each,
then :
C
= 200AH
V
= 12V
N
= 2
PL = 1,060W
ABLE = 200 ∗ 12 ∗ 21060 = 4.53hrs
ABLE = 200 ∗ 12 ∗ 21060 = 4.53hrs
